Assignment Case Study

Case Study

Case Study Background

Key Business Objectives

  1. To provide learning programmes which are accessible to a wider population by reducing barriers such as location and time spent away from the workplace.

System Specification

Table 1: Use Case 1 – Registration

Not applicable to the problem

Table 4: Use Case 4 - Post training session Use Case

Title Post Training Session
Description Follow Up to training session
Actors Delegates, Facilitator/Coach, Actor
Trigger Training session has been run
Preconditions delegates have successfully attended the session and completed online questionnaire at the end of the session
Post-conditions
Normal Flow
  1. Discussion forum opens on course web site – facilitator chooses which courses to enable access to the forum (may be a single or multiple instances of the same course) – forum may be a new or existing forum Database records forum creation, forum name and delegate association to forum

  2. Delegates are given access to their forum

Alternate Flows
Exception Flows
Assumptions The booking system on XXXX website is able to interface with system or export details of delegates to participate on the course

Table 6: Use Case 6 – Scheduling Sessions

Title Scheduling Sessions
Description Scheduling of session
Actors System, facilitator
Trigger Step 1 Use Case 5
Preconditions
Post-conditions
Normal Flow
  1. Set dates and allocate facilitator and actor. Database records this information.

    1. Form created to enable viewing of session with delegate details, numbers, if confirmed, if payment made, who is actor, facilitator and start/finish time of session

  1. Email schedule generated by system

Alternate Flows
Exception Flows
Assumptions

Not applicable to the problem

Data Model

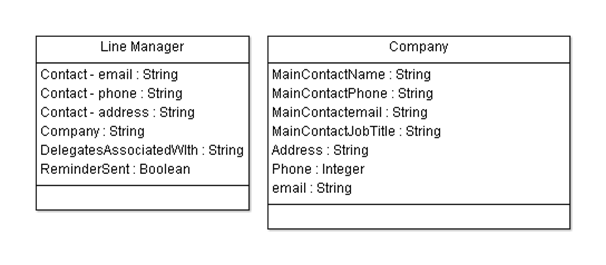

Fig 3 – Class Diagram Other Entities
