Click the show all button remove the packet types from the screen

THIS EXERCISE INCLUDES THREE (3) TASKS TO COMPLETE!

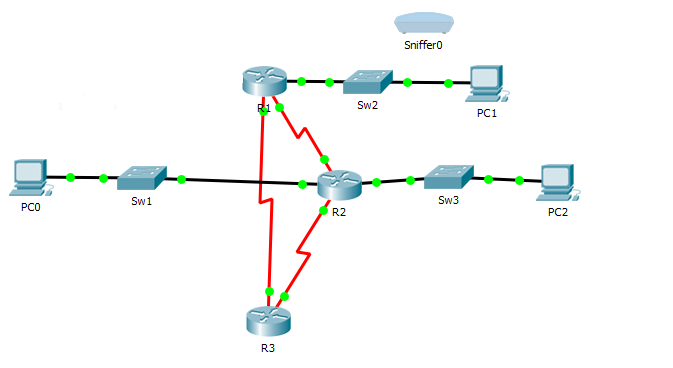

Task 1 – Create a packet tracer network You will be programming the network using RIP dynamic routing protocol. Create the following packet tracer network.

R1(config)# version 2

R1(config)# network 10.0.0.0

R3(config)# version 2

R3(config)# network 10.0.0.0

Task 2 – Programming DHCP

R1(config)# default-router 10.___.1.1

R1(config)# ip dhcp pool mypool2

R1(config)# default-router 10.___.3.1

R1(config)# ip dhcp excluded-address 10.___.1.0 10.___.1.9

R2(config-int)# ip helper-address 10.___.5.1

R2(config)# interface G0/1

• Screenshot of your DHCP server configuration of R1(show running-config and the pools at the top of the configuration of R1).

• Screenshot of your ipconfig for PC0, PC1, and PC2.

2. Disconnect your wire from the switch by clicking on the green circle on the switch side. Drag the connection over and connect it to Ethernet 0 on the sniffer.

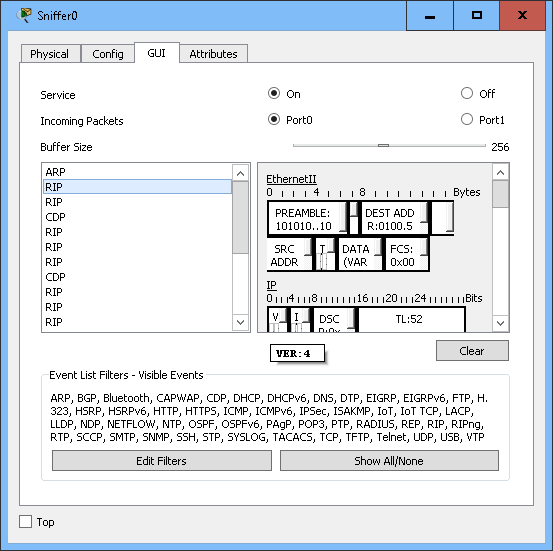

5. Click on one of the packets to see the information about that packet.

Answer the following Questions

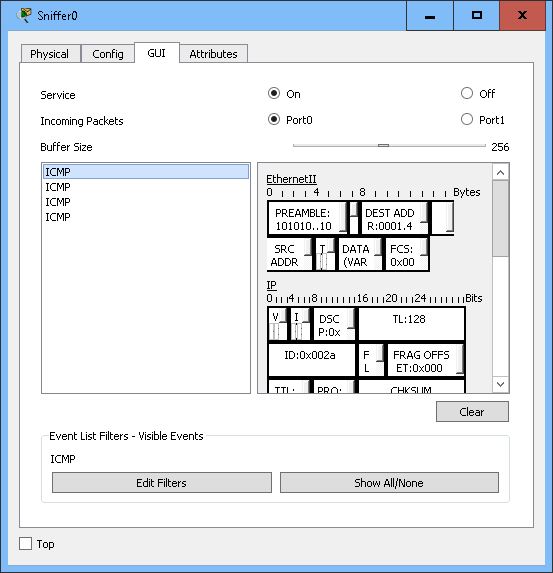

6. Take a screenshot of your sniffer GUI screen.
