Rest list null list lexicon this sg-lexeme orth this

Unification Parsing

Typed Feature Structures

– Combination: what is the result (product) of the rule?

CFG parsing

• Example CFG rule:
𝑆 → 𝑁𝑃 𝑉𝑃

Result: (?)
𝐷𝑃##𝐷𝑒𝑡#𝑁𝑃

• The problem is that this result is probably not an input (RHS) to another rule

• Cannot rule out: “Those sheep runs”
– subject-verb agreement is not encoded
– Subcategorization frames in their different stages

Insufficiency of CFGs

XP→Y X

• Feature structures can do that

1. operate on two (or more) input structures

2. produce exactly one new output structure, or

• This suggests that operation “⊔”:
– is information-preserving
– monotonically incorporates specific information (from runtime inputs)
– …into more general structures (authored rules)

Constraint-based parsing

• From graph-theory and Prolog we know that an ideal “⊔” is graph unification.

– If compatible, which is “more specific”

Head-Driven Phrase Structure Grammar

• “HPSG,” Pollard and Sag, 1994
• Highly consistent and powerful formalism
• Monostratal, declarative, non-derivational, lexicalist, constraint-based
• Has been studied for many different languages• Psycholinguistic evidence

HPSG foundations: Typed Feature Structures

– A ⊔ B is defined for all types:
• “Compatible types” 𝐴 ⊔ B = C
• “Incompatible types” A ⊔ B = ⊥

Type Hierarchy (Carpenter 1992)

• In the view of constraint-based grammar
– A unique most general type: *top* T
– Each non-top type has one or more parent type(s) – Two types are compatible iff they share at least one offspring type
– Each non-top type is associated with optional
constraints
• Constraints specified in ancestor types are monotonically inherited
• Constraints (either inherited, or newly introduced) must be compatible

multiple inheritance

The type hierarchy• A simple example

Automatically
introduce GLB types
so that any two types
that unify have
exactly one greater
lowest bound

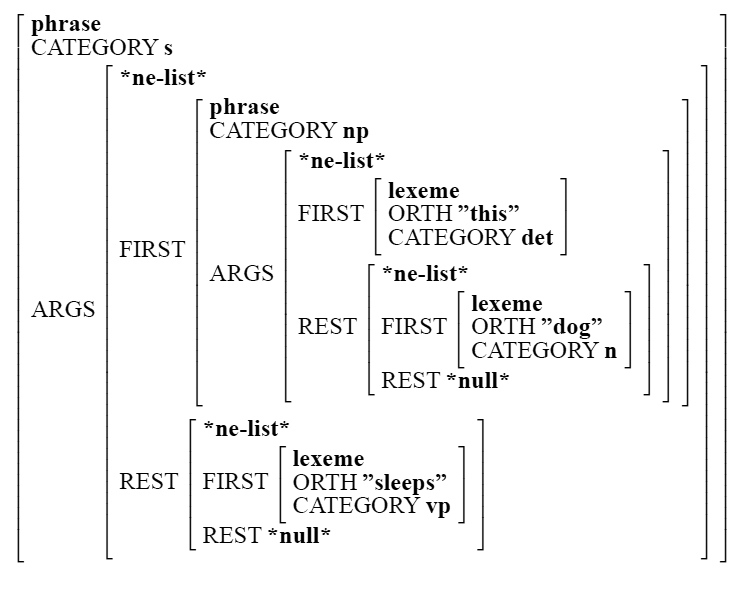

Typed Feature Structures

Feature Structure Grammars• HPSG (Pollard & Sag 1994)

Properties of TFSes

• Finiteness

each node has single type which is defined in the hierarchy

TFS equivalent views

• Unification is the operation of merging
information-bearing structures, without loss of information if the unificands are consistent (monotonicity).

• It is an information ordering: a subsumes b iff a contains less information than b

• Feature structure unification (⊔) is the operation of combining two feature structures so that the result is: – …the most general feature structure that is subsumed by the two unificands (the least upper bound)
– …if there is no such structure, then the unification fails.

• Two feature structures that can be unified are compatible (or consistent). Comparability entails

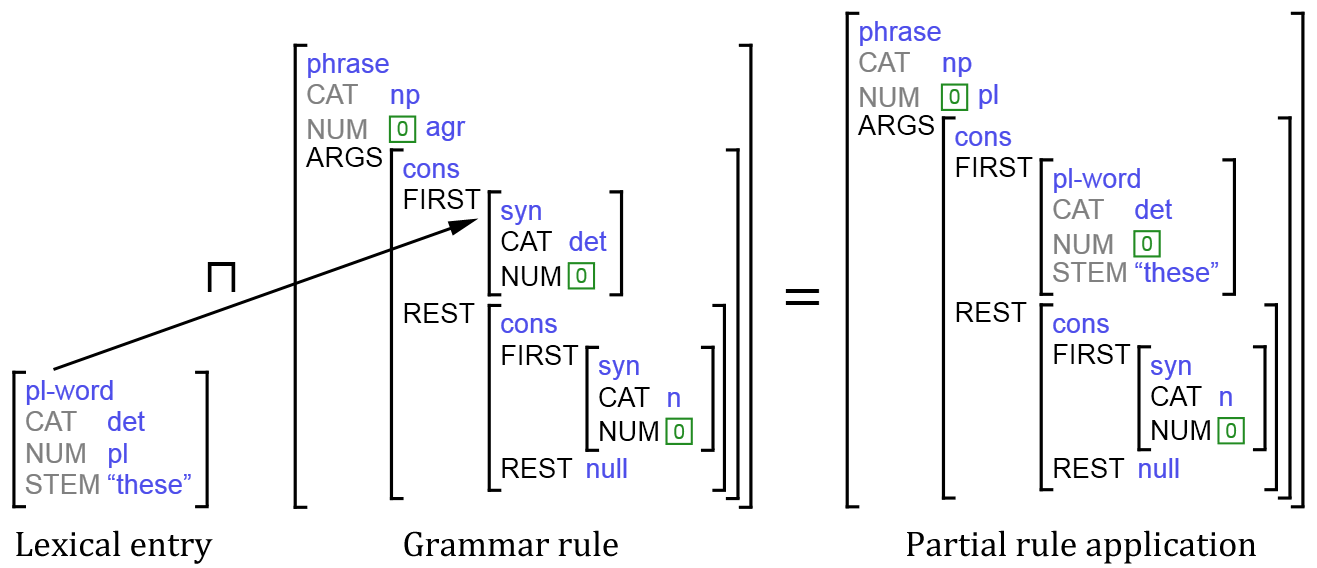

TFS unification
TFS unification has much subtlety
For example, it can render authored co-references vacuous

– unifying the front of B (i.e. the value of its LIST feature) into the tail of A (its LAST value) and

– using the tail of difference list B as the new tail for the result of the concatenation.

Result of appending the lists

this 𝑥 ⋀ fierce 𝑥 ⋀ dog 𝑥 ⋀chased 𝑒, 𝑥, 𝑦 ⋀
that 𝑦 ⋀ angry 𝑦 ⋀ cat(𝑦)

Semantics desiderata

• Compositionality
– The meaning of a phrase is composed of the meanings of its parts

Copestake, A., Flickinger, D., Pollard, C. J., and Sag, I. A. (2005). Minimal recursion semantics: an introduction. Research on Language and Computation, 3(4):281–332.

• Used across DELPH-IN projects

DELPH-IN Consortium
• An informal collaboration of about 20 research sites worldwide focused on deep linguistic processing since ~2002
– DFKI Saarbrücken GmbH, Germany
– Stanford University, USA
– University of Oslo, Norway
– Saarland University, Germany
– University of Washington, Seattle, USA
– Nanyang Tecnological University, Singapore
– …many others

Key DELPH-IN Projects

• English Resource Grammar (ERG)
Flickinger 2002, • The Grammar Matrix
Bender et al. 2002, • Other large grammars
JACY (Japanese, Siegel and Bender 2002) GG; Cheetah (German; Crysmann; Cramer and Zhang 2009) Many others: • Operational instrumentation of grammars
[incr tsdb()] (Oepen and Flickinger 1998)• Joint-reference formalism tools

English Resource Grammar (Flickinger 2002)

• Primary approach to combating parse intractability

• Every new feature structure is checked for a subsumption relationship with existing TFSs.

Parsing

…with a different adjacency/proximity condition
– Instead of joining adjacent words (parsing) the generator joins mutually-exclusive EPs
• Trigger rules
– Required for postulating semantically vacuous lexemes• Index accessibility filtering
– Futile hypotheses can be intelligently avoided
• Skolemization
– Inter-EP relationships (‘variables’) are burned-in to the input semantics to guarantee proper semantics

DELPH-IN Joint Reference Formalism• Key focus of DELPH-IN research: computational Head- driven Phrase Structure Grammar
HPSG, Pollard & Sag 1994
• TDL: Type Description Language
Krieger & Schafer 1994
• A minimalistic constraint-based typed feature structure (TFS) formalism that maintains computational
tractability
Carpenter 1992
• MRS: Minimum Recursion Semantics
Copestake et al. 1995, 2005
• Multiple toolsets: LKB, PET, Ace, agree
• Committed to open source

TDL: Type Description Language• A text-based format for authoring constraint- based grammars

TDL: type definition language

Project components

engine utilities Thai text
utilities
