Site xxxxxxxx challenges and implementation iii
The first and second floor of each building requires 150 network connections each for machines connected to the management network used by administrators to manage the network devices
The third floor of each building requires 75 network connections for the servers
Protection from intrusions is required and should be documented
A plan to verify security and failover measures is required
IMPORTANT: Your network diagram must include an identifying label (e.g., callout box) that includes your class and section, assignment title, your name, and the date. Edit the items in italics. Table 2. Example Network Diagram Callout Box.
Any necessary hardware
Subnet Mask
CIDR Value
Servers: SRVx where x is the server number incremented by a value of 1 for each server
For each site routing device, implement a private ip addressing scheme using a range suitable for corporate infrastructure and include the following:

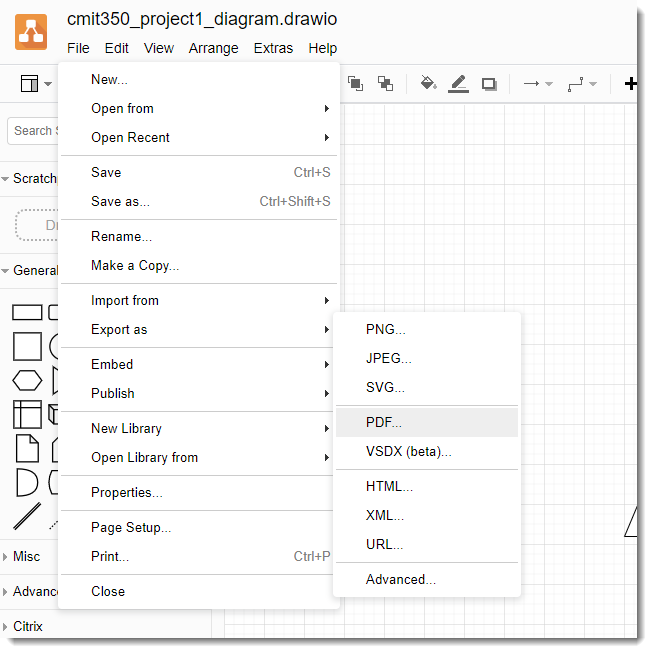

Figure 2. Draw.io
‘Export’ as Function to PDF
RUBRICS:
Define the specifications of the required technologies
Create documentation appropriate to the stakeholder
PART 3. : Technical detailed task
For the final part of the assignment, summarize the site requirements and/or any challenges (changes to the topology as you detailed in Assignments part 1 and 2) you are attempting to overcome. You should also provide an updated overall site topology based on your design.
Use this document as a guide for formatting and organizing your CMIT 350 final Network Design Proposal submission.
Title Page
I. Site “XXXXXXXX” Challenges and Implementation
II. Site “XXXXXXXX” Challenges and Implementation
III. Site “XXXXXXXX” Challenges and Implementation
IV. Bibliography
I. Site “XXXXXXXXXX” Challenge and Implementation
As described in the scenario, the Dallas site was developed without any VLAN structure, and administrators have found the need to isolate broadcast traffic from a layer-2 perspective.
Site Solution(s) and Technologies
Open Shortest Path First is an open standard routing protocol that’s been implemented by a wide variety of network vendors, including Cisco (Jones, 20xx).
Sample Configuration
Provide an updated and polished network design diagram (Assignment 1 updated).
Repeat the format to include document components for each site. In this sample, sections numbered II and III in your table of contents would be provided next, followed by the bibliography.
Integrate appropriate credible sources to illustrate and validate ideas.
Explain the significance of the issue or problem.
Communicate policies, processes, and/or procedures to stakeholders.
Create documentation appropriate to the stakeholder.
