Solid mechanics ensc practical session solutionsdr elena pasternak slide problem
1.Problem 2.47, Beer et al (2015)
Dr Elena Pasternak Slide 2
Dr Elena Pasternak Slide 4

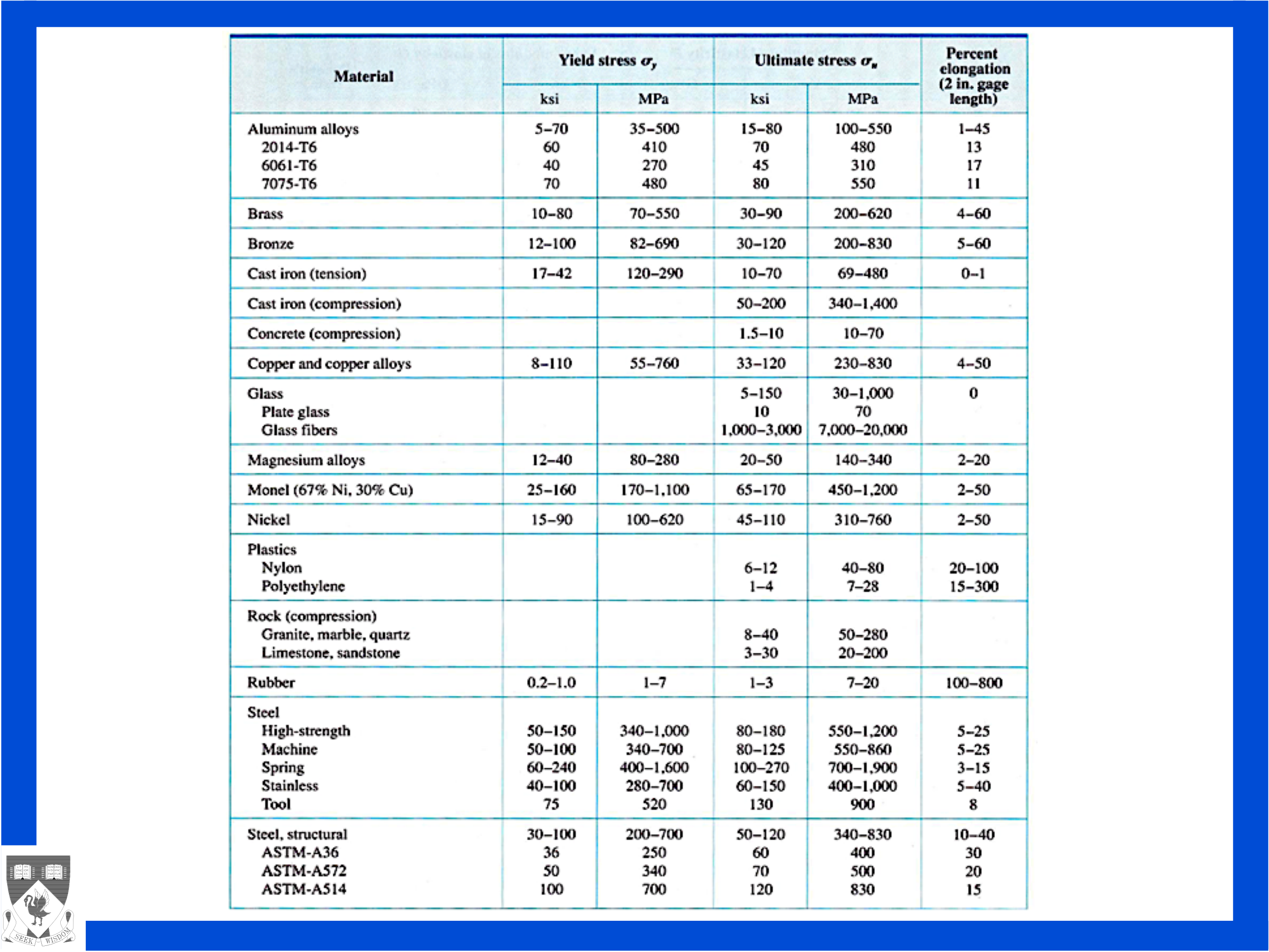

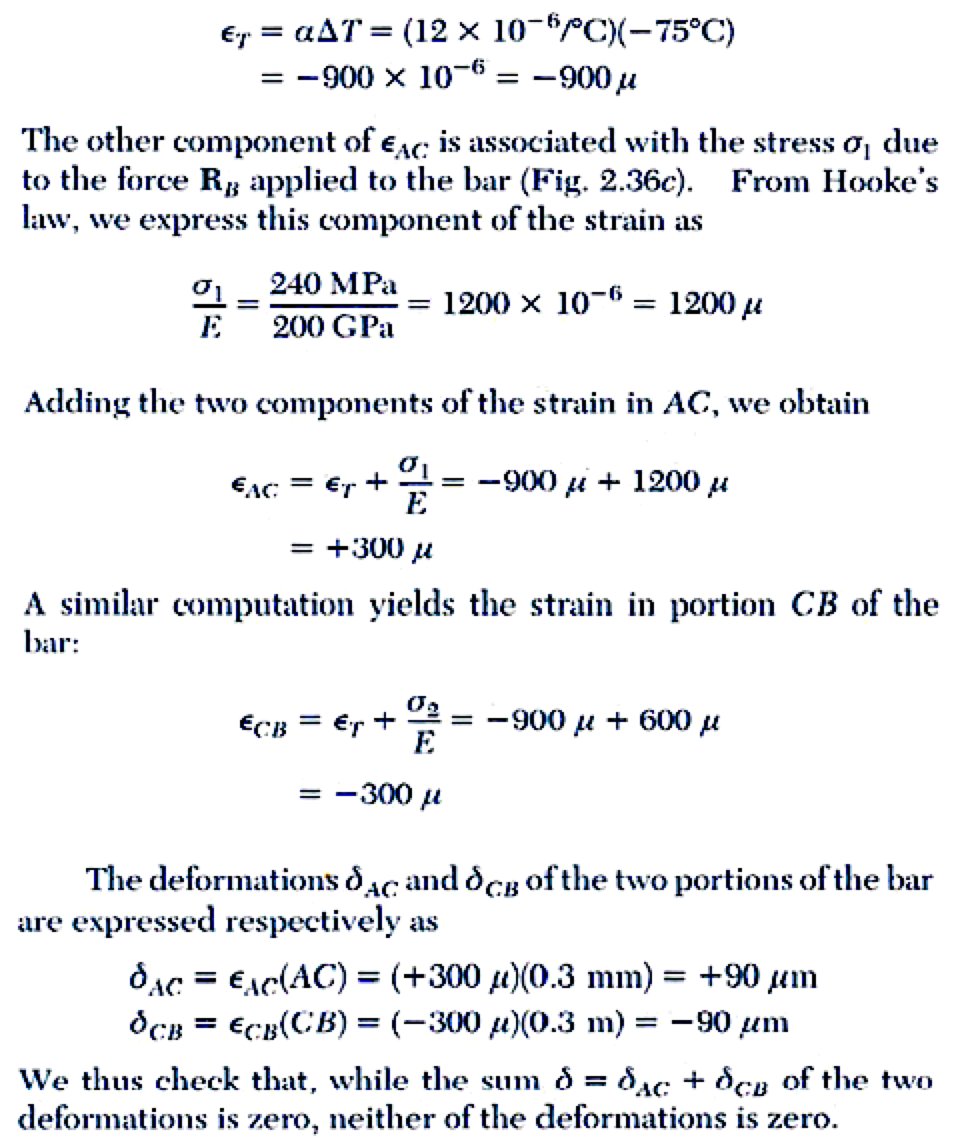

Solution
Dr Elena Pasternak Slide 6
Dr Elena Pasternak Slide 9

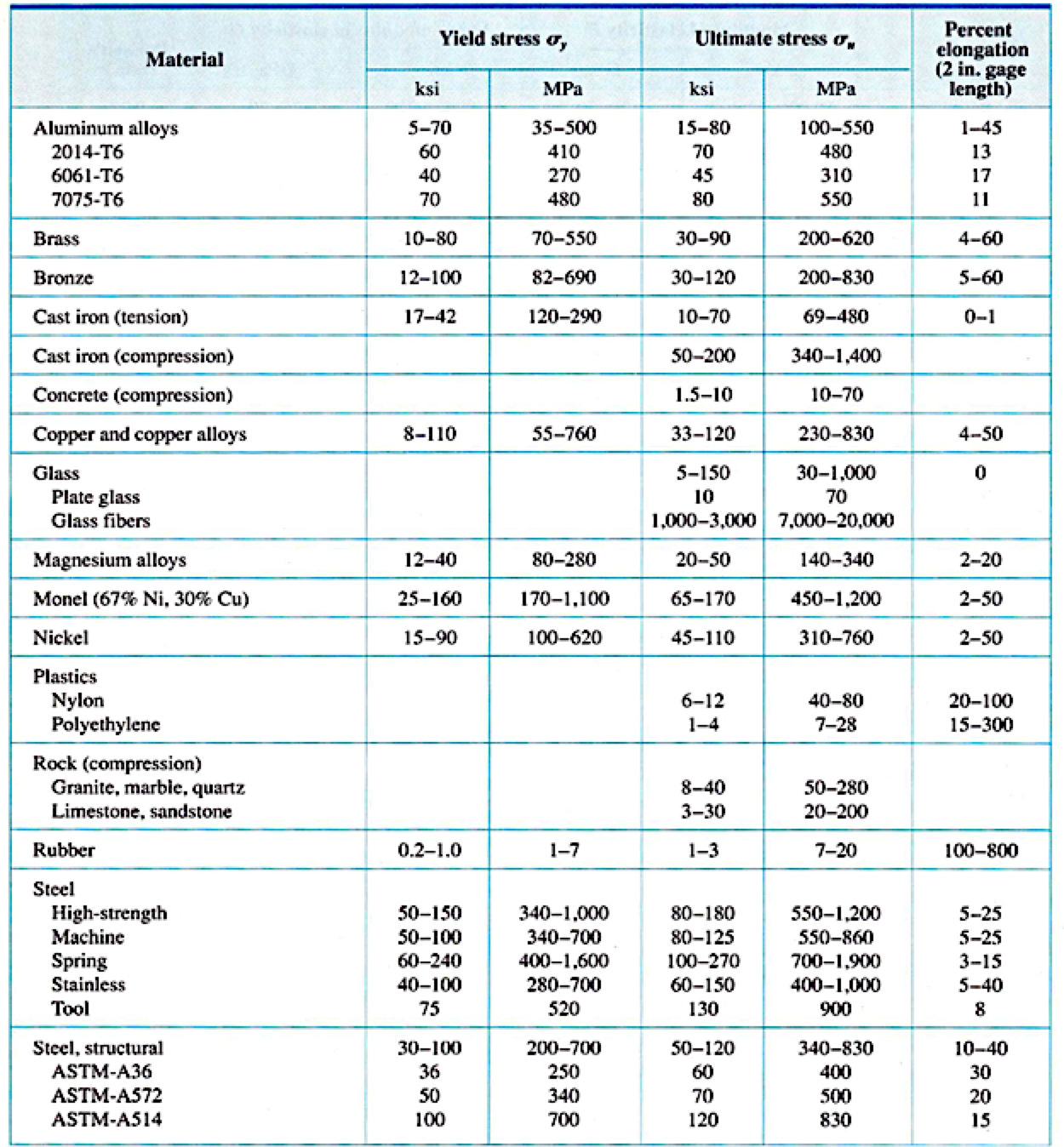

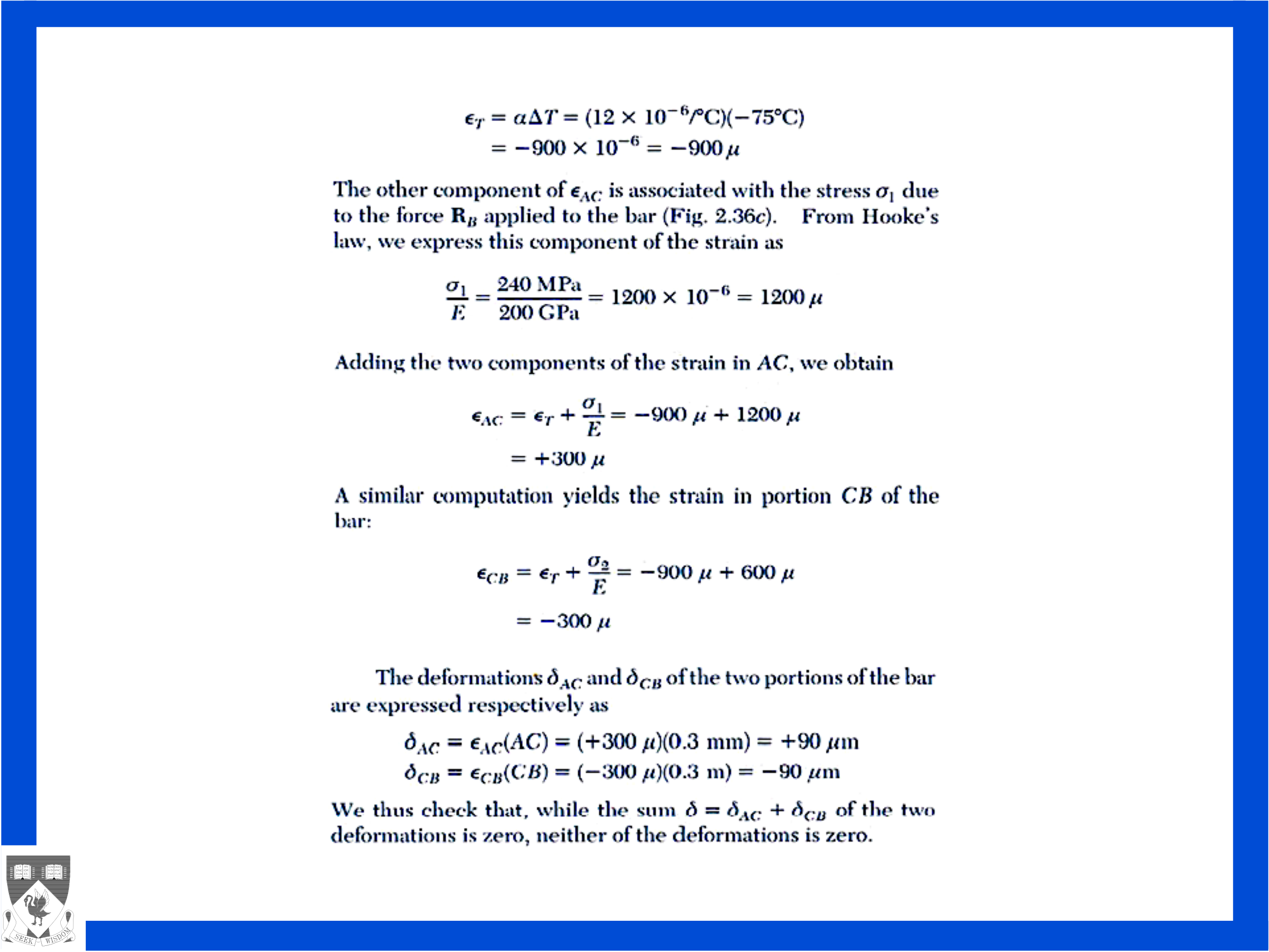

Solution
Dr Elena Pasternak Slide 11
Dr Elena Pasternak Slide 13
| a |
|
x1 |
|
|---|
Stress concentration. Round hole. Kirsch’s solution

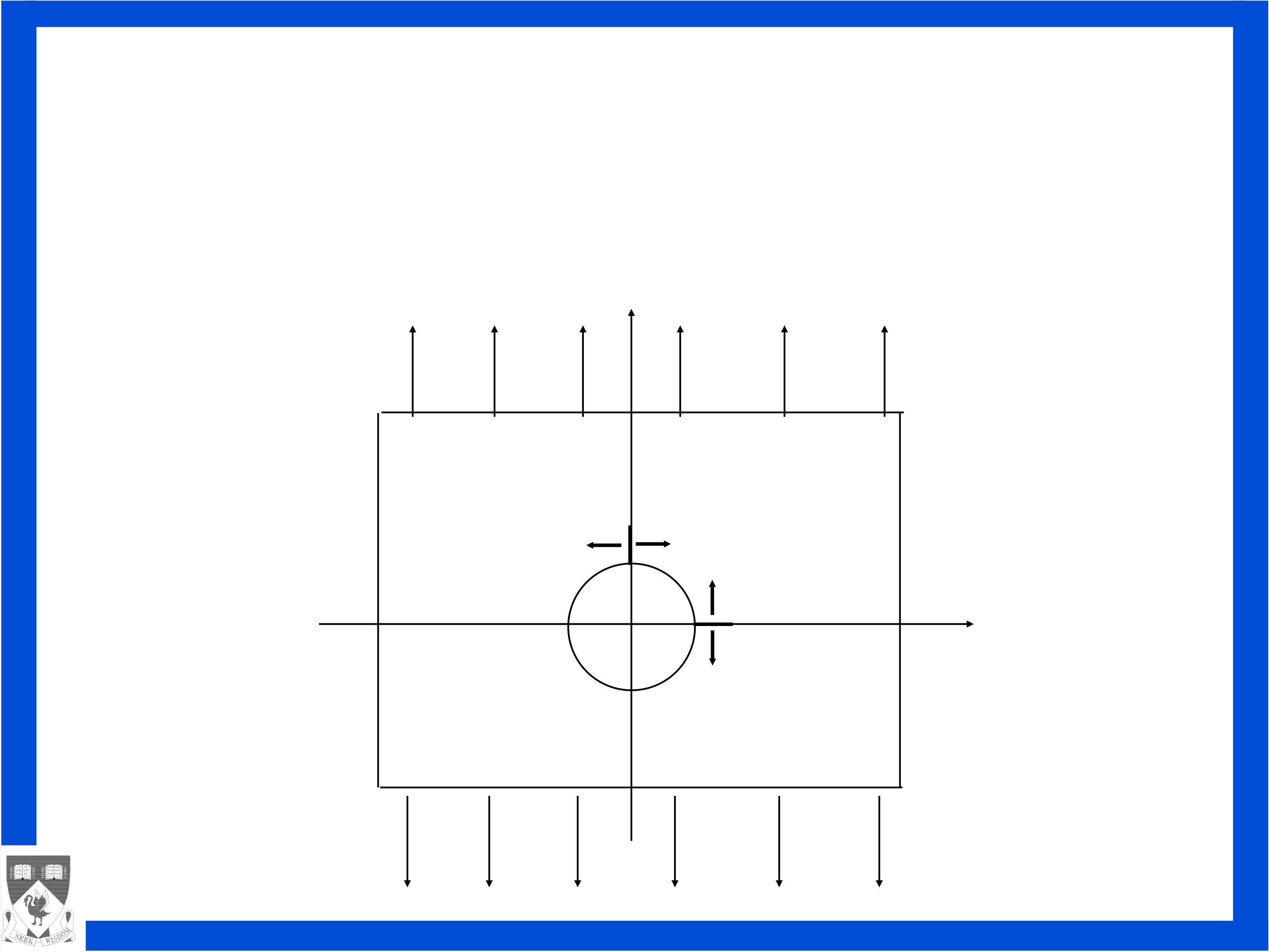

From the Kirsch’s solution (Find and show stress on the elementary area at x1=a, x2=0 and x1=0, x2=a. Where is the most ‘dangerous’ spot in the structure below?
| a |
|
||
|---|---|---|---|
| x1 |
Dr Elena Pasternak Slide 17
