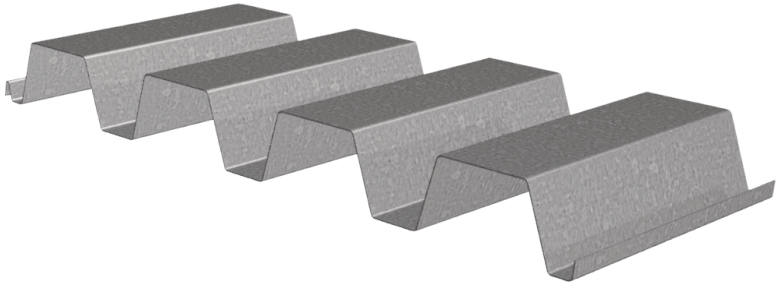

PLN3™-32/HSN3™-32 ROOF DECKS GRADE 50 STEEL

Section Properties

Allowable Reactions at Supports Based on Web Crippling, Rn/Ω (lb/ft)

Optional Features
• Inquire regarding cost and lead times for:

white or gray primer optional -Short cuts < 6’-0”

Deck	Spans	Criteria	4'-0"	6'-0"	8'-0"	9'-0"
Gage	Spans	Criteria	4'-0"	6'-0"	8'-0"	9'-0"	10'-0" 11'-0" 12'-0" 14'-0" 16'-0" 18'-0" 20’-0"
	Single	Wn / Ω	440	196	110	87	70	58	49	36	28	22	18
		L/240	---	---	92	65	47	36	27	17	12	8	6
22	Double	Wn / Ω	445	211	122	97	79	66	55	41	31	25	20
		L/240	---	---	---	---	---	---	---	---	30	21	15
	Triple	Wn / Ω	531	258	150	120	98	81	69
		L/240	---	---	---	---	97	73	56	35
	Single	Wn / Ω	564	251	141	111	90	75	63	46	35	28	23
		L/240	---	---	114	80	58	44	34	21	14	10	7
20	Double	Wn / Ω	587	272	155	123	100	83	70	51	39	31	25
		L/240	---	---	---	---	---	---	---	---	37	26	19
	Triple	Wn / Ω	711	335	193	153	125	103	87	64
		L/240	---	---	---	---	118	89	68
	Single	Wn / Ω	837	372	209	165	134	111	93	68	52	41	33
		L/240	---	---	157	111	81	61	47	29	20	14	10
18	Double	Wn / Ω	855	391	222	176	143	118	99	73	56	44	36
		L/240	---	---	---	---	---	---	---	---	49	34	25
	Triple	Wn / Ω	1047	484	276	219	178	147	124
		L/240	---	---	---	216	158	118	91
	Single	Wn / Ω	1101	490	275	218	176	146	122	90	69	54	44
		L/240	---	476	201	141	103	77	60	38	25	18	13
16	Double	Wn / Ω	1108	505	287	227	185	153	128	95	72	57	46
		L/240	---	---	---	---	---	---	---	91	61	43	31
	Triple	Wn / Ω	1357	626	357	283	230	190	160
		L/240	---	---	---	269	196	148	114	72

Notes:
1.Table does not account for web crippling. Required bearing should be determined based on specific span conditions.
