Written capital lettersentities examples entities person employee

Conceptual Data Modeling

• A detailed model that captures the overall structure of data in an
organization

• In the design stage, the conceptual data model is translated into a physical design

• Project repository links all design and data modeling steps performed during SDLC

• Data model is derived from an intimate understanding of the business.

Bottom-up

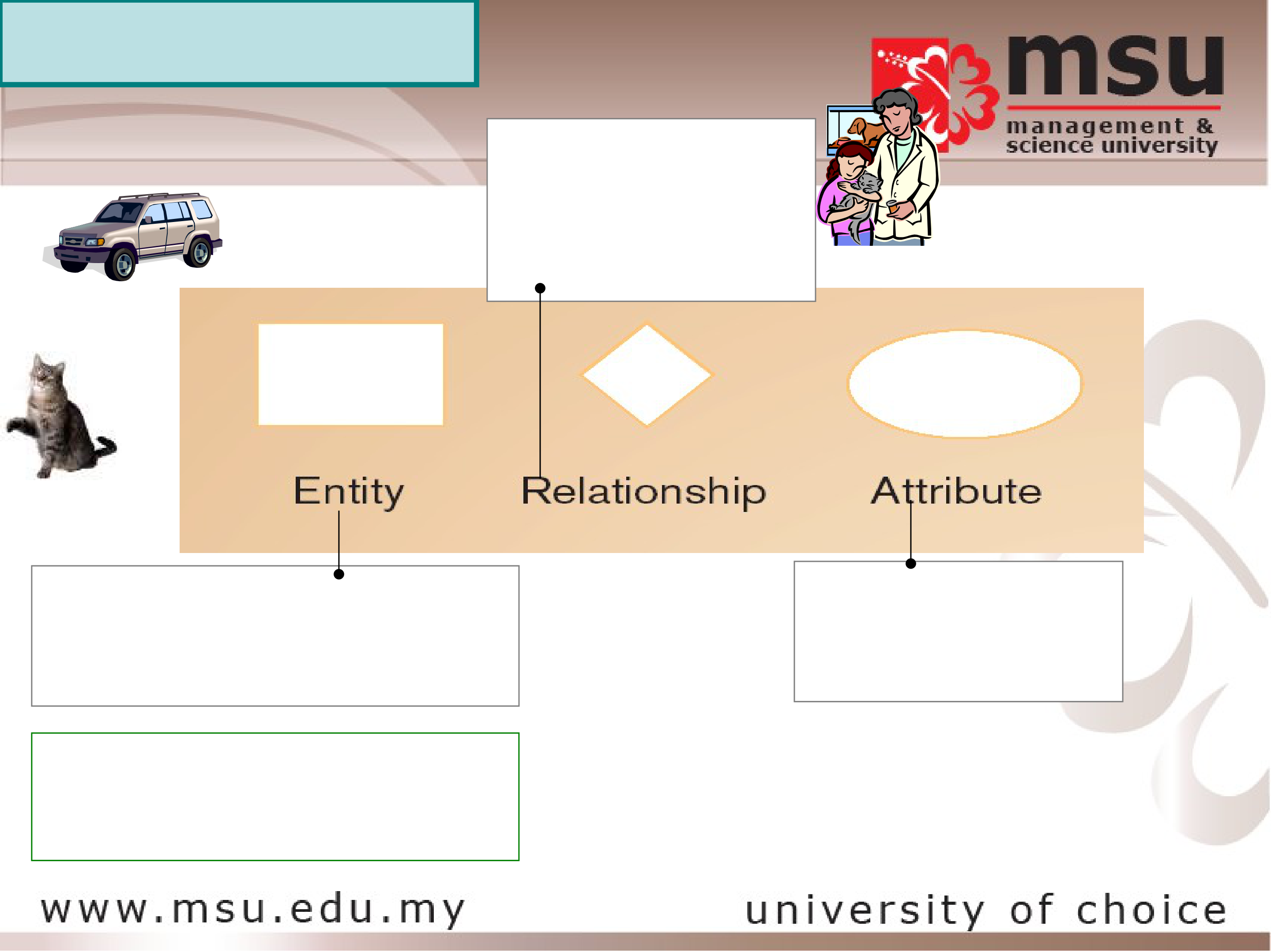

Chen Notation

Crow’s Foot Notation

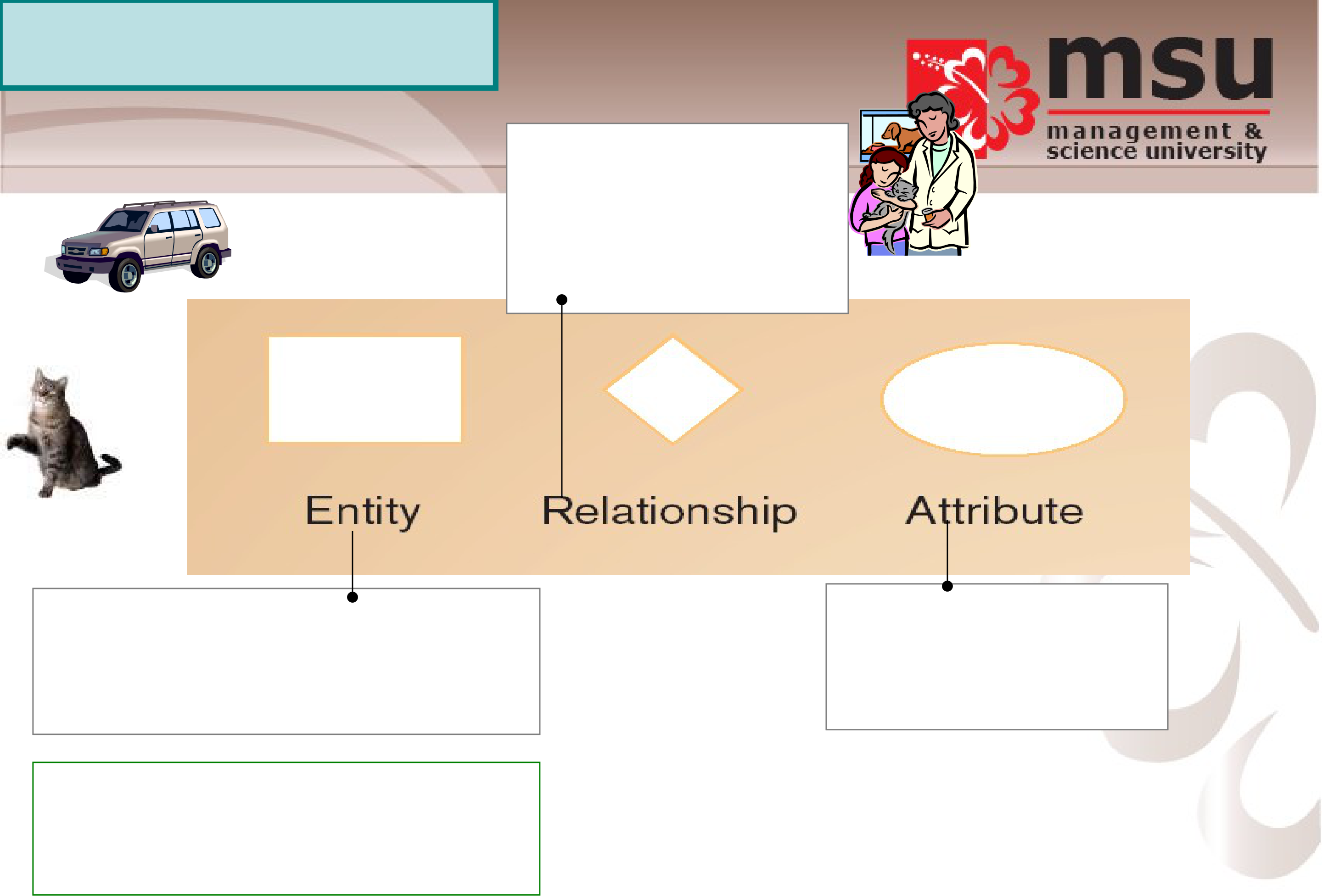

EntityName

EntityName Verb phrase

• Refers to entity set and not to single entity occurrence

• Corresponds to table and not to row in relational environment

• Examples of entities:
– Person: EMPLOYEE, STUDENT, PATIENT– Place: STORE, WAREHOUSE
– Object: MACHINE, PRODUCT, CAR
– Event: SALE,REGISTRATION, RENEWAL– Concept: ACCOUNT, COURSE

• Guidelines for naming and defining entity types: – An entity type name is a singular noun
– An entity type should be descriptive and specific
– An entity name should be concise
– Event entity types should be named for the result of the event, not the activity or process of the event.

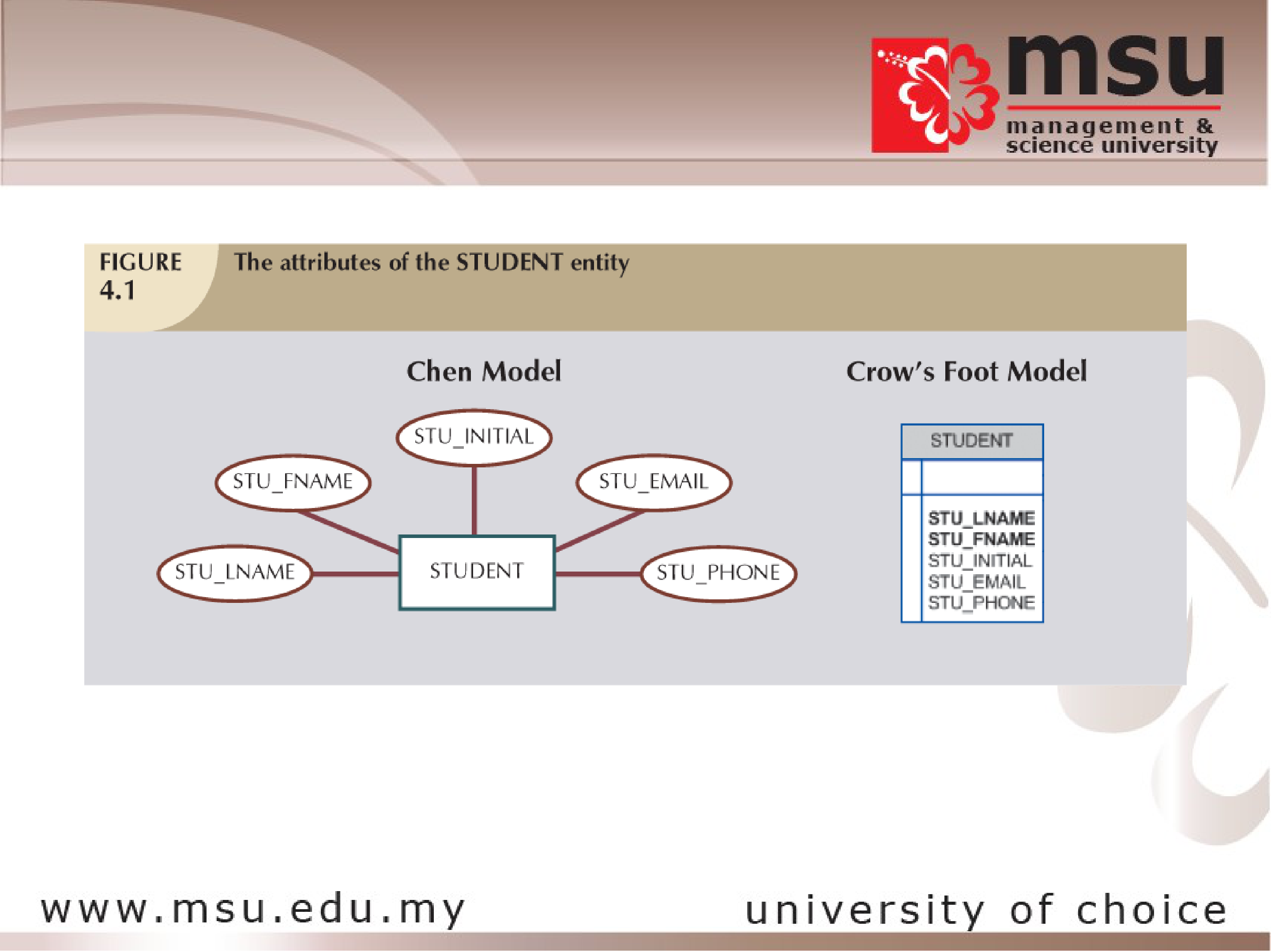

STUDENT: Student_ID, Student_Name, Home_Address, Phone_Number, Major

• Guidelines for naming attributes:

Identifier Attributes

• If there is more than one candidate key, need to make a choice.

Identifier

Name

IdNum DeptID

Email

Composite attribute can be subdivided• Simple attribute cannot be subdivided• Single-value attribute can have only a single value

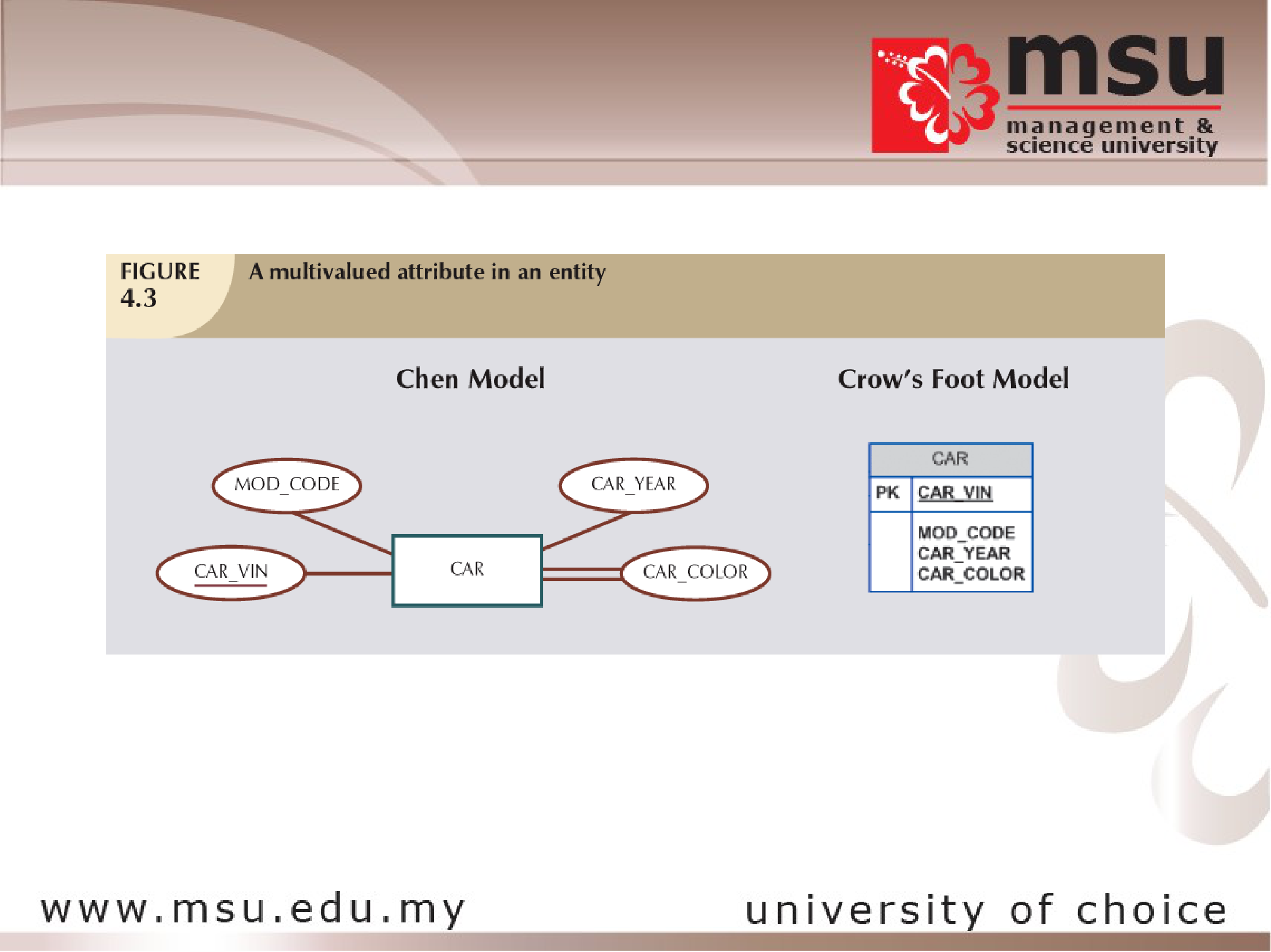

Multivalued attributes can have many values

Derivedattribute: value may be calculated from other attributes

– Need not be physically stored within database

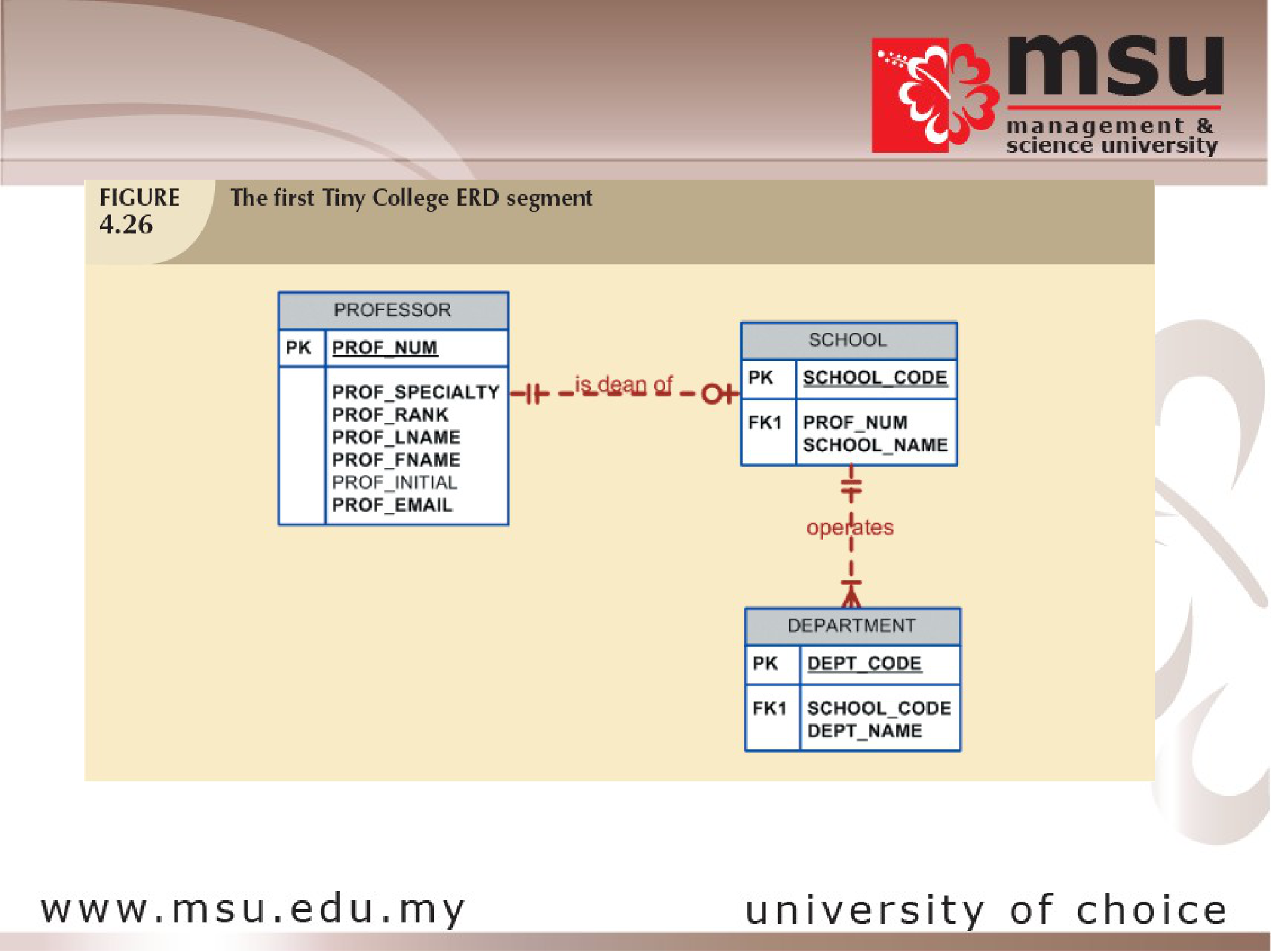

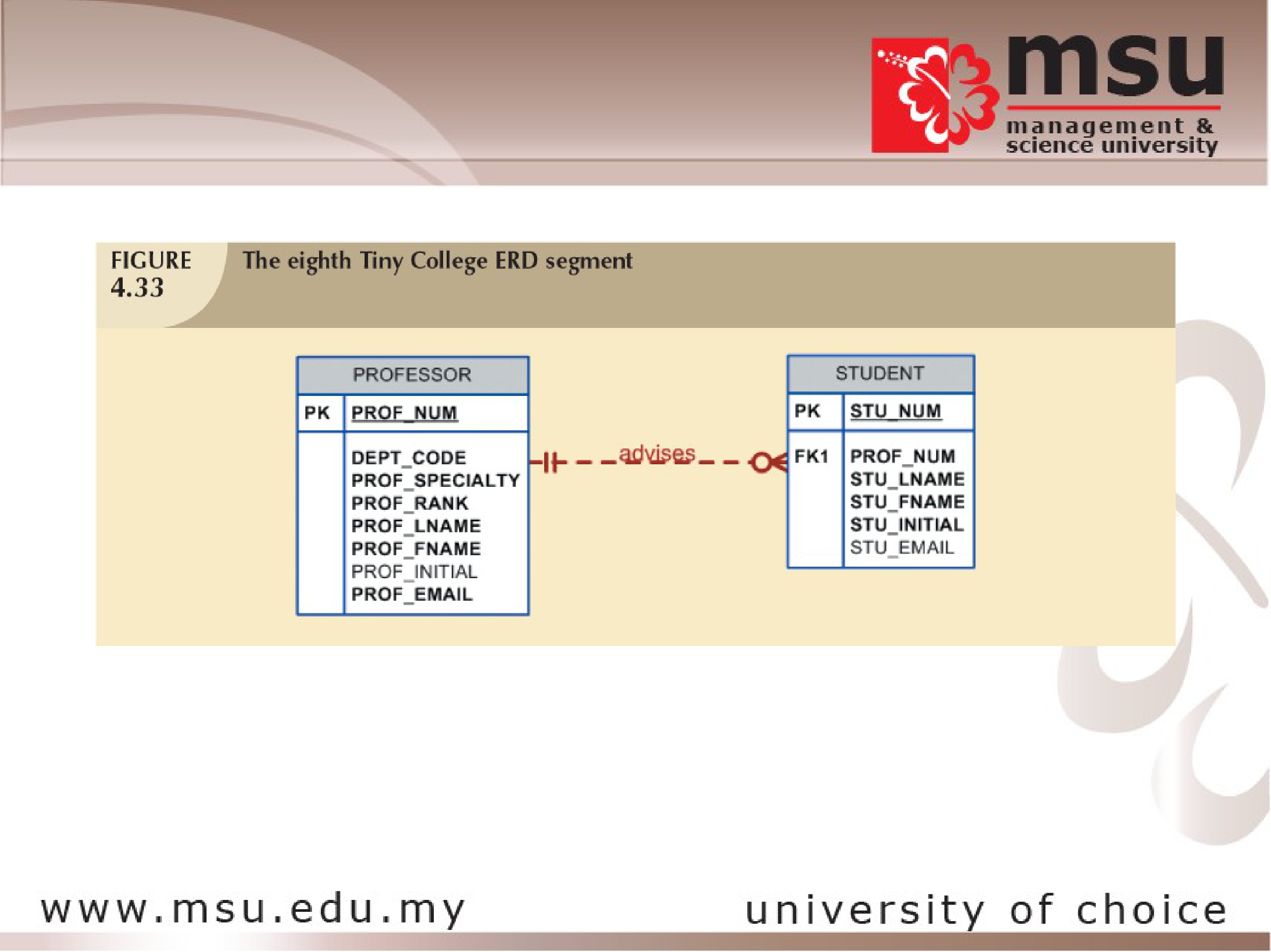

• Relationships between entities always operate in both directions

• Relationship can be classified as 1:M

• relationship name is an active or a passive verb.

Relationship name:

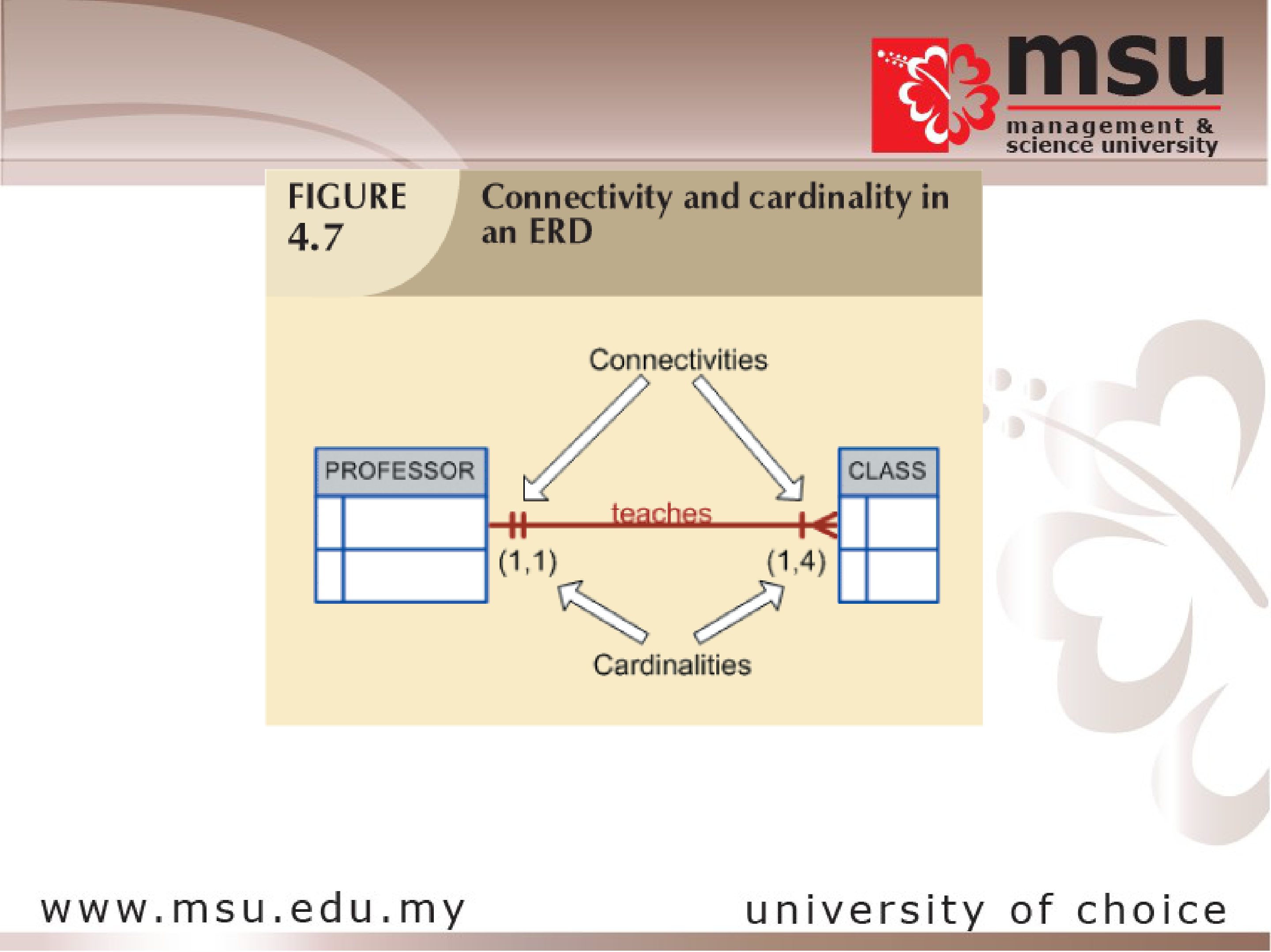

Connectivity and Cardinality

Connectivity

Existence Dependence

– Sometimes such an entity is referred to as a strong or regular entity

Relationship Strength

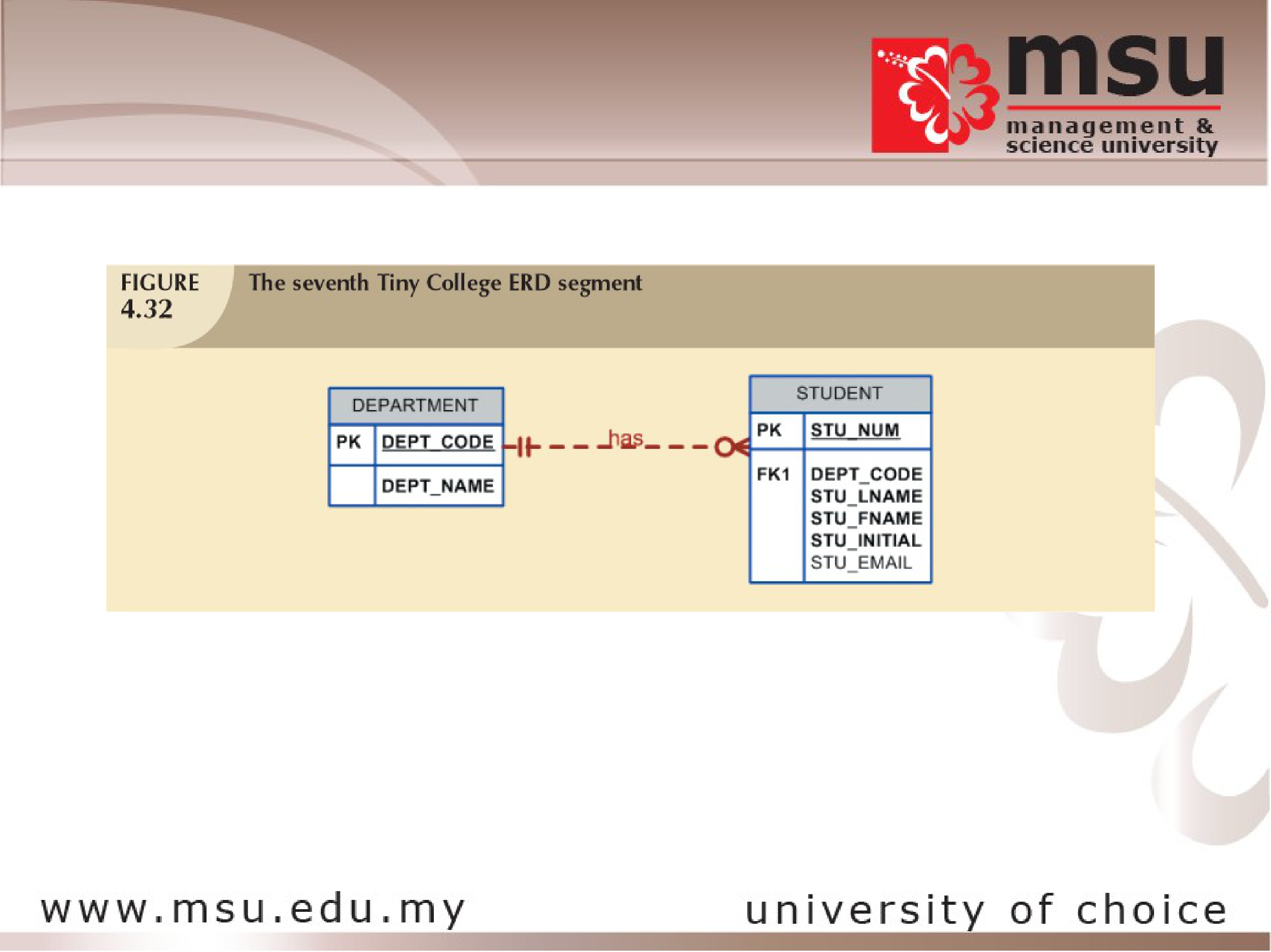

Weak Entities

Weakentity meets two conditions
– Existence-dependent
– Primary key partially or totally derived from parent entity in relationship

Optionalparticipation

– One entity occurrence does not require
corresponding entity occurrence in particular relationship

Relationship Degree

• Indicates number of entities or participants associated with a relationship

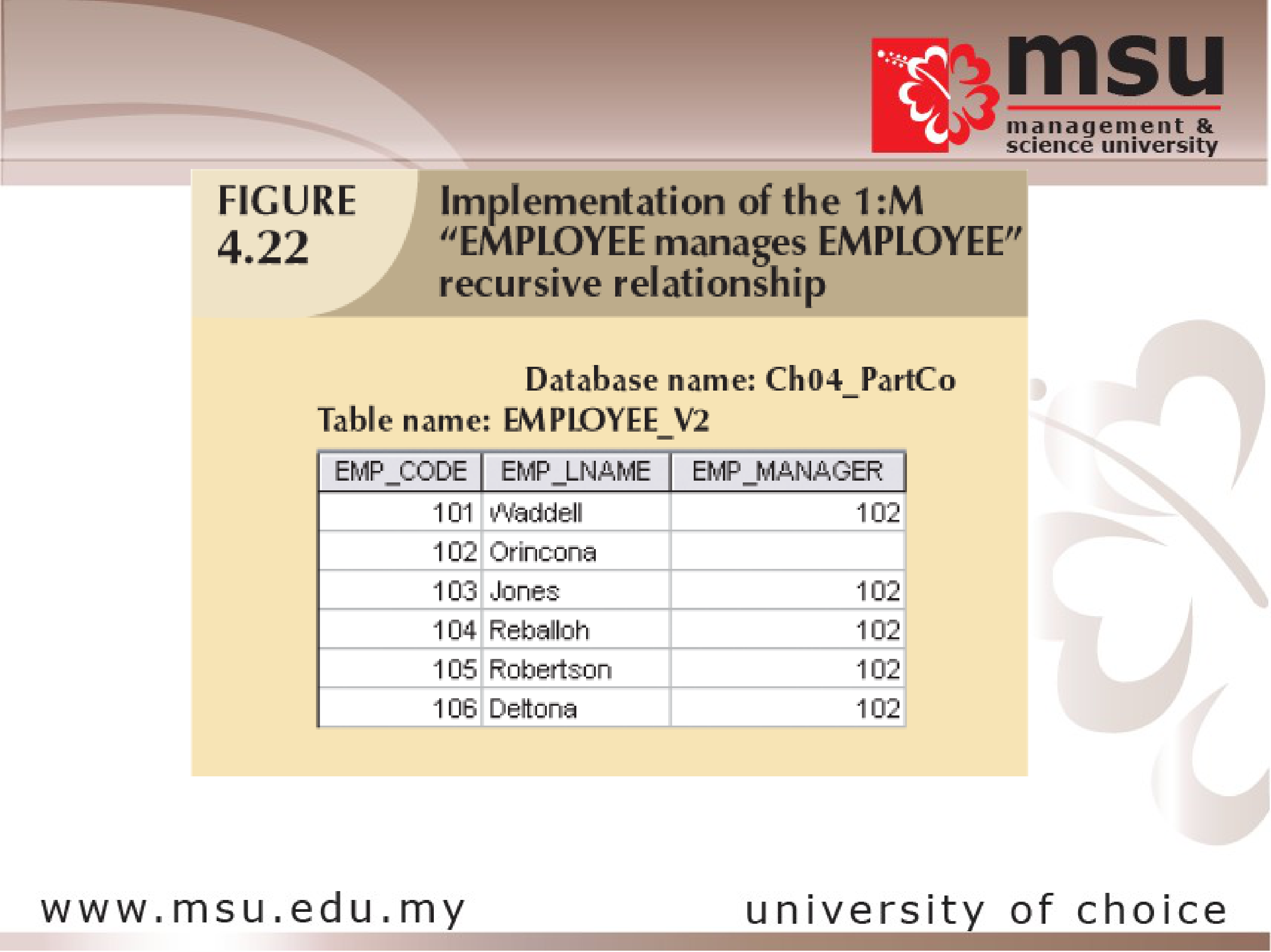

Unaryrelationship
– Association is maintained within single entity • Binaryrelationship
– Two entities are associated
Ternaryrelationship
– Three entities are associated

Associative (Composite) Entities

• Database design is an iterative process
– Create detailed narrative of organization’s
description of operations
– Identify business rules based on description of operations
– Identify main entities and relationships from
business rules
– Develop initial ERD
– Identify attributes and primary keys that adequately describe entities
– Revise and review ERD

Database Design
Challenges: Conflicting Goals

• Database designers must make design compromises – Conflicting goals: design standards, processing
speed, information requirements
• Important to meet logical requirements and design
conventions
• Design of little value unless it delivers all specified query and reporting requirements
• Some design and implementation problems do not yield “clean” solutions

• In this chapter you learned how to: Define key data modeling terms.

Draw entity-relationship (E-R) and class diagrams to represent common business situations.
