ITNE2003 Lab Tutorial 6

{`ITNE2003
Install, Configure, Operate and Troubleshoot Medium-Sized Networks
Lab Tutorial – 6 of Lesson - 6
Victorian Institute of technology
`}

InterVLAN Routing LAB

Task Assignment

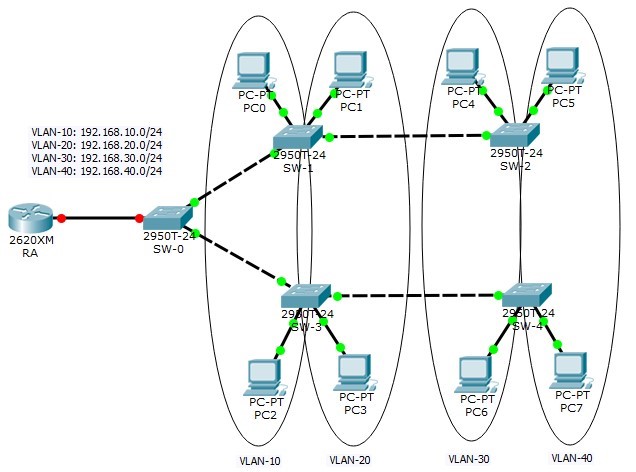

ITNE2003 Lab Tutorial 6 image 1

Network Address Plan

VLAN-10

Allocated subnet

192.168.10.0/24

Network Address

192.168.10.0

Broadcast Address

192.168.10.255

SW-1: F0/1

To PC0: 192.168.10.2

SW-3: F0/1

To Pc2: 192.168.10.3

VLAN-20

Allocated subnet

192.168.20.0/24

Network Address

192.168.20.0

Broadcast Address

192.168.20.255

SW-1: F0/2

PC1: 192.168.20.2

SW-3: F0/2

PC3: 192.168.20.3

VLAN-30

Allocated subnet

192.168.30.0/24

Network Address

192.168.30.0

Broadcast Address

192.168.30.255

SW-2: F0/1

PC4: 192.168.30.2

SW-4: F0/1

PC6: 192.168.30.3

VLAN-40

Allocated subnet

192.168.40.0/24

Network Address

192.168.40.0

Broadcast Address

192.168.40.255

SW-2: F0/2

PC5: 192.168.40.2

SW-4: F0/2

PC7: 192.168.40.3

Switch and router interface description table

This table helps network engineers to quickly identify the routing direction of each interface in a complex network environment.

SW-1

Interface FastEthernet0/1

ACCESS

VLAN-10

Interface FastEthernet0/2

ACCESS

VLAN-20

Interface FastEthernet0/3

TRUNK

NATIVE VLAN-100

ALLOWED: VLAN-10, 20, 30, 40

Interface FastEthernet0/4

TRUNK

NATIVE VLAN-100

ALLOWED: VLAN-10, 20, 30, 40

SW-2

Interface FastEthernet0/1

ACCESS

VLAN-30

Interface FastEthernet0/2

ACCESS

VLAN-40

Interface FastEthernet0/3

TRUNK

NATIVE VLAN-100

ALLOWED: VLAN-10, 20, 30, 40

Interface FastEthernet0/4

Not connected

SW-3

Interface FastEthernet0/1

ACCESS

VLAN-10

Interface FastEthernet0/2

ACCESS

VLAN-20

Interface FastEthernet0/3

TRUNK

NATIVE VLAN-100

ALLOWED: VLAN-10, 20, 30, 40

Interface FastEthernet0/4

TRUNK

NATIVE VLAN-100

ALLOWED: VLAN-10, 20, 30, 40

SW-4

Interface FastEthernet0/1

ACCESS

VLAN-30

Interface FastEthernet0/2

ACCESS

VLAN-40

Interface FastEthernet0/3

TRUNK

NATIVE VLAN-100

ALLOWED: VLAN-10, 20, 30, 40

Interface FastEthernet0/4

Not connected

SW-0

Interface FastEthernet0/3

TRUNK

TO ROUTER RA

NATIVE VLAN-100

ALLOWED: VLAN-10, 20, 30, 40

Interface FastEthernet0/1

TRUNK

NATIVE VLAN-100

ALLOWED: VLAN-10, 20, 30, 40

Interface FastEthernet0/2

TRUNK

NATIVE VLAN-100

ALLOWED: VLAN-10, 20, 30, 40

Router RA

Interface FastEthernet0/0

NO IP ADDRESS

InterVLAN routing

Interface FastEthernet0/0.10

192.168.10.1/255.255.255.0

TO VLAN-10

Interface FastEthernet0/0.20

192.168.20.1/255.255.255.0

TO VLAN-20

Interface FastEthernet0/0.30

192.168.30.1/255.255.255.0

TO VLAN-30

Interface FastEthernet0/0.40

192.168.40.1/255.255.255.0

TO VLAN-40

Network Topology

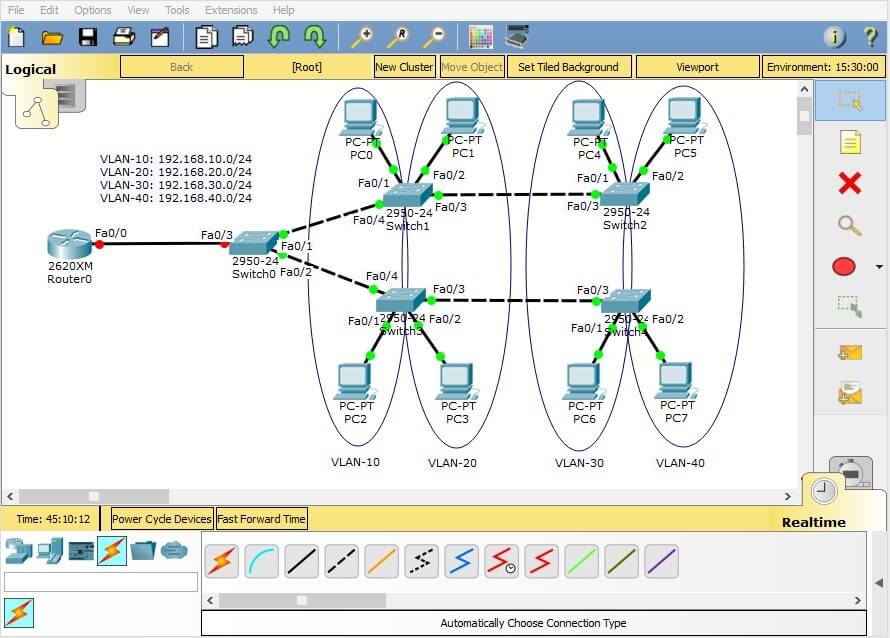

Before we start to configure the above network, we need to create the topology in our Packet Tracer simulation tool. Based on the above table we can build our network as follows:

ITNE2003 Lab Tutorial 6 image 2

**TIP: As explained in previous guidelines, it's recommended to have information about your network in your topology area. In the above figure, four different VLANs are distinguished by blue ellipse. In order to use drawing tools to separate different parts of your network, click the drawing tool on the right pane of Packet Tracer.

Seperating VLANs

ITNE2003 Lab Tutorial 6 image 3

By clicking on the icon, a new window will pop up, in which you can select your tool.

ITNE2003 Lab Tutorial 6 image 4

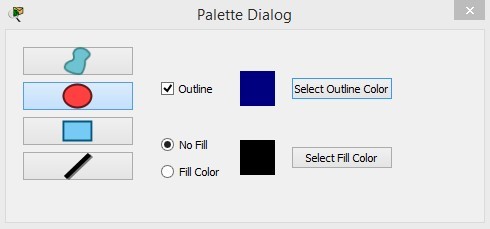

In this window you can select the shape you want to insert into your topology area as well as the color of it.

Configuration

**Please notice that we have skipped some administrative settings of our network devices (password, banner…) in this lab for brevity. You can configure them in your simulation tool to have a complete configuration of the network.

Switch Configuration

Hostname

ITNE2003 Lab Tutorial 6 image 5

VLAN Configuration

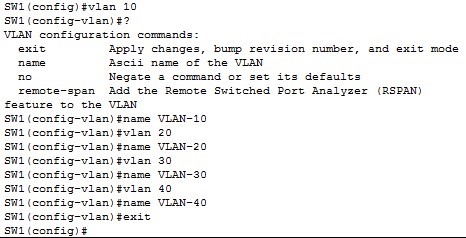

In this scenario we have 4 VLANs (VLAN-10, VLAN-20, VLAN-30 and VLAN-40), as depicted in the figure. These VLANs should be defined on all our switches. Starting with switch 1(SW-1), following configuration shows how to configure VLANs on a switch.

ITNE2003 Lab Tutorial 6 image 6

Interface Configuration

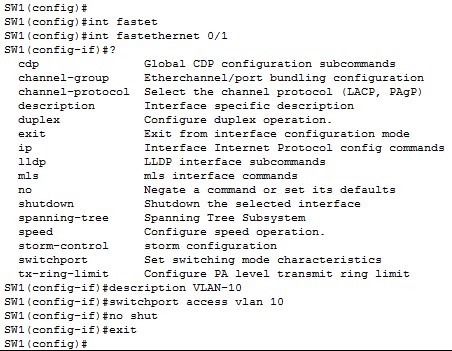

Since interface FastEthernet 0/1 and FastEthernet0/2 are connected to hosts, we configure them as access interfaces. Following figure shows the configuration.

FastEthernet 0/1

ITNE2003 Lab Tutorial 6 image 7

FastEthernet0/2

ITNE2003 Lab Tutorial 6 image 8

Interfaces FastEthernet 0/3 and FastEthernet 0/4 are connected to switches (SW2 and SW0 respectively). So they should be configured as trunk.

FastEthernet 0/3

ITNE2003 Lab Tutorial 6 image 9

FastEthernet 0/4

ITNE2003 Lab Tutorial 6 image 10

Save the running configurations

Finally, we save the running configuration to NVRAM so switches can load the configuration automatically next time when power on.

ITNE2003 Lab Tutorial 6 image 11

Repeat these steps for switches SW-2, SW-3, SW-4 and SW-0

InterVLAN Configuration on Router

Like all other network devices, we first configure the hostname of our Router.

Hostname

ITNE2003 Lab Tutorial 6 image 12

Physical Interface Configuration

ITNE2003 Lab Tutorial 6 image 13

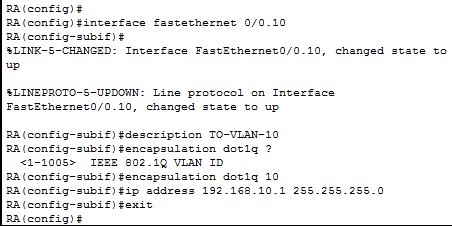

Virtual interface configuration

ITNE2003 Lab Tutorial 6 image 14

You have to repeat the above configuration for VLAN-20, 30 and 40.

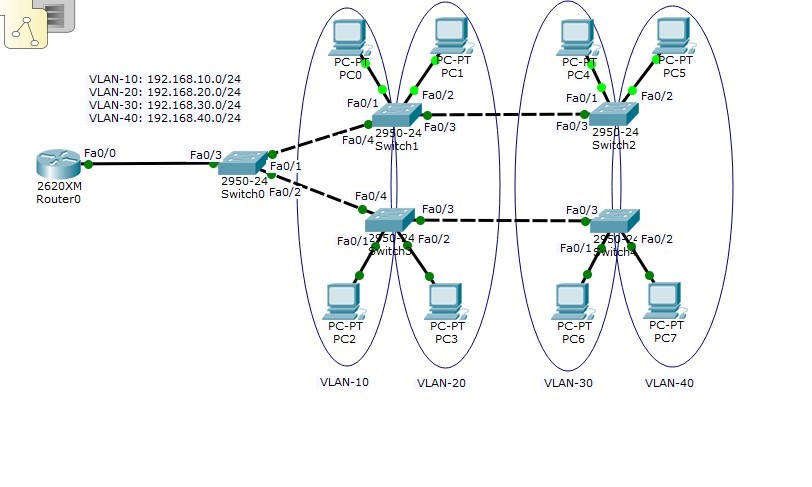

After you have successfully configured the router interfaces, the connection between the interfaces are established and shown in green colour. Following figure shows the final status of our network.

ITNE2003 Lab Tutorial 6 image 15

Save the running configurations

Finally, we save the running configuration to NVRAM so the router can load the configuration automatically next time when power on.

ITNE2003 Lab Tutorial 6 image 16

PC Configuration

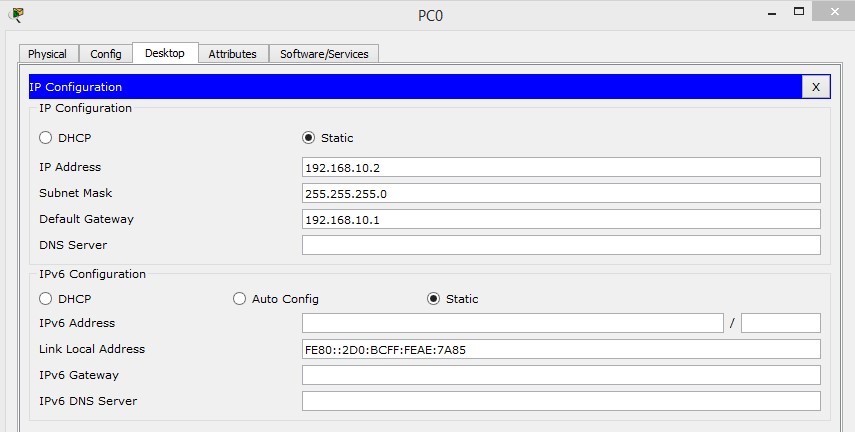

Now that we have configured routers and switches, we need to assign IP addressed to PCs. The default gateway would be the IP address of router’s sub-interfaces.

ITNE2003 Lab Tutorial 6 image 17
