The UML diagram which describe the models of the system so, that it can work from the data so that we can examiner it from the value of text. It is also called communication diagram or interaction diagram. It is the representation of the relationship and interactions among software objects in the UML.

It describe the interactions among objects in terms of sequence messages. It represent a combination of information taken from class, sequence and use case diagram.

Class roles:

It describe the basic behavior of the object. It uses the UML object symbol to illustrate class roles, but it don’t list the object attribute.

Association roles:

It describe that how an association will behave given a particular situation.


By the use of message it denote time and instead message in order of execution.

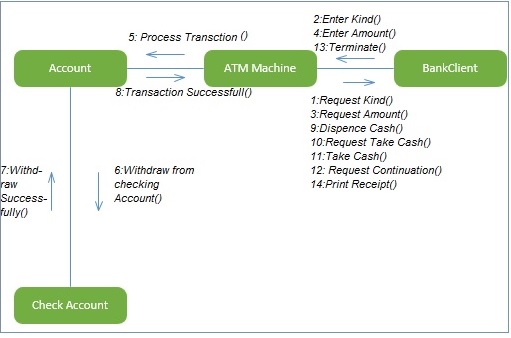

Collaboration Diagram
