AutoCAD Sample Homework Help

ENGINEERING DRAWING WITH CAD FINAL EXAM

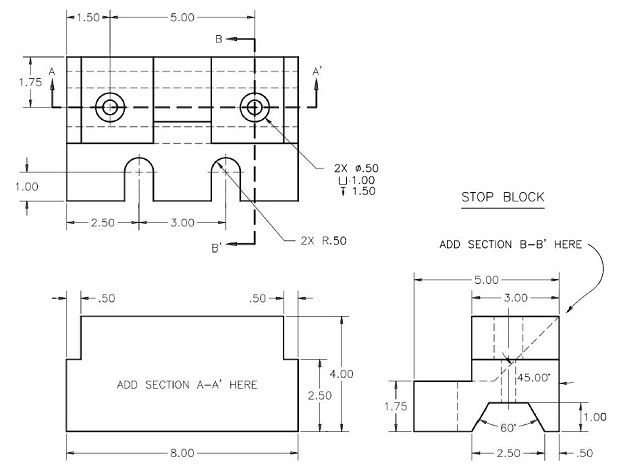

  • Create the Multiview drawing and the full A-A’ and B-B’ Section Views of the Stop Block drawn below using AutoCAD.
  • Add dimensions to your views.
  • Apply standards.
  • Submit your Final drawing with appropriate Title Block.

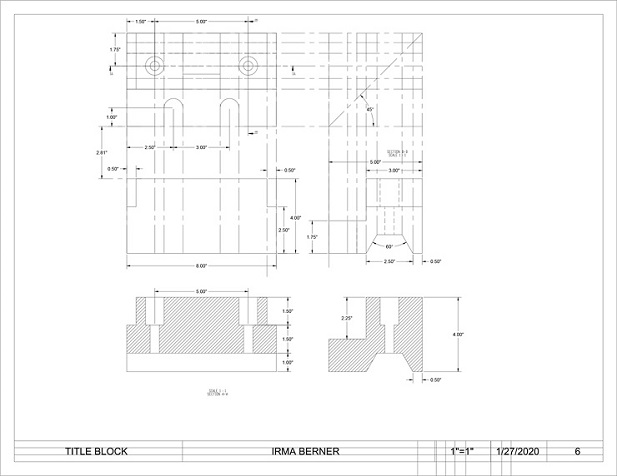

AutoCAD Sample Assignment Image 1 AutoCAD Sample Assignment Image 2
